Portable surface measuring device with free probe system
Compact model for surface measurements in the production hall and measuring room — with high straightness precision and a wide measuring range
Measurement in both the X and Y directions
Faster, reliable and cost-effectiv with 5 CNC axes
Measurement in all directions by rotatable probe head
Non-contact linear technology in the X-axis
Fast, low maintenance and low vibration
Positioning speed of 100 mm/s for high measuring efficiency, even for large work pieces
Extensive safety concept for maximum protection of operator and device
Optional: CNC stylus change
Optional: additional rotation axis and tailstock for fully automatic measurement of crankshafts and camshafts
Area of application

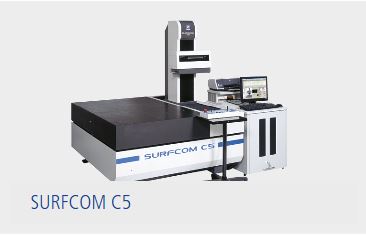

The SURFCOM C5 has been developed for fully automatic surface measurement and quality assurance in production. It is ideal for crankshafts and engine components in series production. The SURFCOM C5 features a massive granite construction and a specially developed active vibration table to minimize the environmental impact. The feed in the X direction is equipped with a vibration-free, low-maintenance and high-precision linear drive and provides additional stability.
